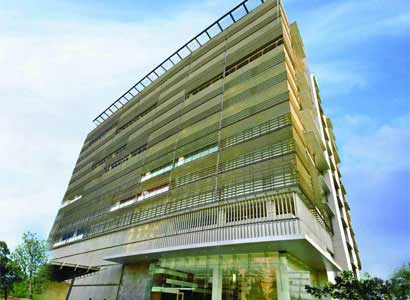

SOUTH CITY PINNACLE

The ultimate IT destination of Kolkata. Among the best Grade A fully operational and occupied Landmark Buildings in Kolkata, situated in the IT Hub of Kolkata, Sector V in Salt Lake the building is a focused IT / ITES building of more than 2.75 lacs sft. of premium space . The building today is the home to global majors like Price Waterhouse Coopers Service Deliver Centre, Arcelor Mittal, Outotec India and Deeplok Builders (P) Ltd.It is one of the best commercial project in India.

Address:

Blok EP – XI -1, Saltlake, Sector - V, Kolkata – 700091

commercial-project-in-kolkata

Overview

office-space Address

Blok EP – XI -1, Saltlake, Sector - V, Kolkata – 700091

best-office-space Total area

1.0 Acre

best-office-space-in-kolkata Structural Consultants

Predrag Eror, Dubai

Towers

One

Design Architect/Architect on Record

aCTa International, Singapore

Edifice Architects Private Limited, Kolkata

Specifications

  • Total Built up Area: 366000 sqft
  • No. of Floors : B+G+13 floors
  • Floors: Basement to 3rd floor multi-level car parking and 4th to 13 floors office space.
  • Floor Area (SBA): 27554 sqft each floor.
  • Column to Column Distance: 10mx 8.4m. leaving floor space totally free
  • Floor to Ceiling height: 3.9 m
  • Vertical Transportation: 6 high speed elevators 1 service elevators From ground floor Elevator management system: Automatic rescue device

Amenities

  • Electrical (WBSEB): 33Kv HT connection through RMU Two 1600 KVA dry type transformers
  • Diesel Generator for power backup: 2925 KVA in 2 units for entire premises. Captive generation to meet 100% power back-up. DG sets with auto synchoninizers and AMF panel
  • Others: Emergency panel for fire alarm control, EPabx, emergency lighting in each floor, fire pumps, sump pumps and hydro pneumatic systems. Capacitors for power factor correction Provision for controlled access and electronic surveillance Required illumination through UPS for emergency evacuation
  • Power available for each unit Electricity / DG Back: 107 KVA per floor
  • HVAC :Centrally air-conditioned office space Water cooled centrifugal and screw chillers with VSD Indoor air quality as per ASHRAE standards Chiller sequencing for optimum energy performance Ducting to SMACNE standards Provision for automatic motorized smoke and fire dampers Integrated to Building Management System for optimization and energy saving Double skin AHU
  • Fire Protection: Compliant with WBFS and NFPA norms Double layered sprinklers in common areas Addressable double layered detection system External & internal hydrants Automatic pumps connected underground reservoir Intelligent microprocessor based alarm panel Codes & standards – NBC 1986 and CFO ( Kolkata Fire Brigade )
  • Environment friendly features: Waste water recycling through STP and sophisticated softening plants for use in the HVAC system Energy efficient equipment
  • Energy Efficiency: Integrated Building management System Programmed Start/Stop Optimum Start/Stop Chiller Optimization Adaptive Control
  • Building Façade :Louver on all sides of the building façade cut direct entry of sun light, reducing the heat gain in the building Double glazed units with high light transmission and low relative heat gain Orientation of glazing to maximize natural light and minimize heat load
  • Water: Supplied by local municipal body NDITA

Landmark

Place Kilometers
Airport 14.0
PC Chandra Garden 7.2
Ruby Connector 10.0
New Town 9.2
Sector V 0.4
Park Circus/Ballygunge 11.7
Park Street 12.1
Alipore 15.0
South City Mall 15.0
Sealdah Station 9.0
Howrah Station 13.9
Nearest Metro station 1.0
Proposed Metro station 1.0
Shalimar Station 18.1
